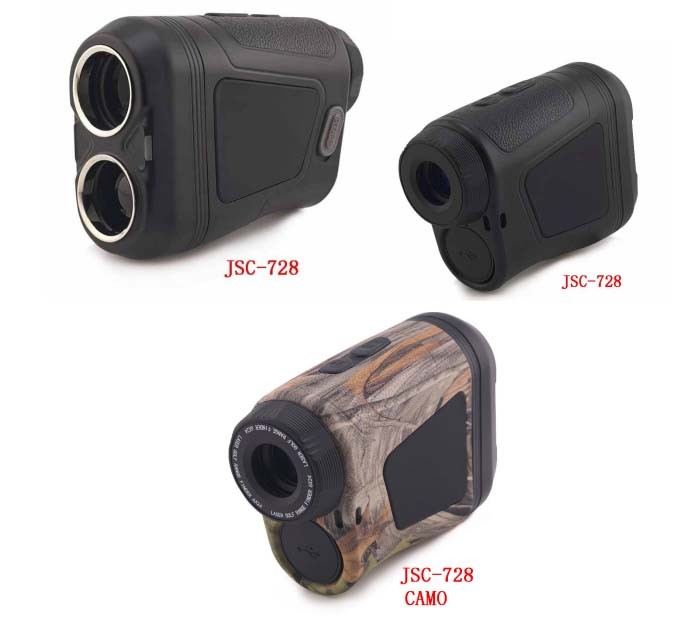

JSC-728 Hunting Rangefinder

Performance

5Y to 1000Y at visibility 5km

Rangefinder Range

5-1000M

Rangefinder Accuracy

       5-500M（Y）      ±1M(Y)

500-1000M(Y)     ±2M(Y)

±1M(Y)±0.2%

Inclinometer range

 -45° to +45°

Inclinometer Accuracy

±2°

Distance unit settings

meters   yards

Angle unit settings

degrees

Data displayed

range,  elevation, horizontal distance,height difference, slope adjusted distance

Function limitation of slope measurement

slope switch

Vibration prompt function

   Yes

（First target priority）

   Yes

Flag locking distance

≤300M

Slope

   Yes

Scan

   Yes

Battery condition

   Yes

Magnet

No

Screen brightness adjustment

Manual 5-speed adjustment

Magnification X Obj Lens:

6 x 24

Optics Magnification

6x

Objective diameter

24mm

Material of the Prism

BK4

Eyepiece Diameter

15mm

Angle of view

 7°

Field of view (at 1000m/yds)

113m/yds

Exit pupil

3.5mm

Exit pupil Relief

15±1mm

Lens Coating:

Multi-Coated

Diopter compensation

± 4dpt.

Laser

class 1, eye-safe, 905nm

Maximum measuring time

≤0.5s

Operating temperature

 -10 to 50°C

Waterproof

IPX54

Battery

rechargeable lithium battery capacity 450mA/h

Weight (with battery)

160g±5g

Dimensions

101*75*39 mm
